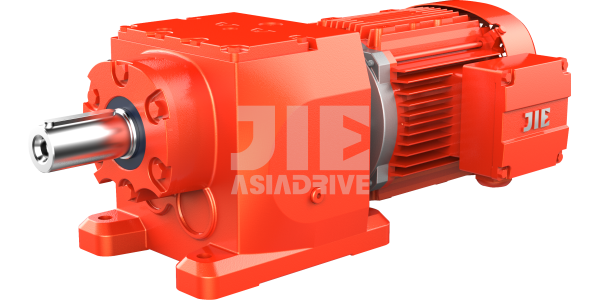

Model：17~187
Ratio：3.37~289.74
Input power：0.12~250 kW
Output torque：2.4~56494 N.m

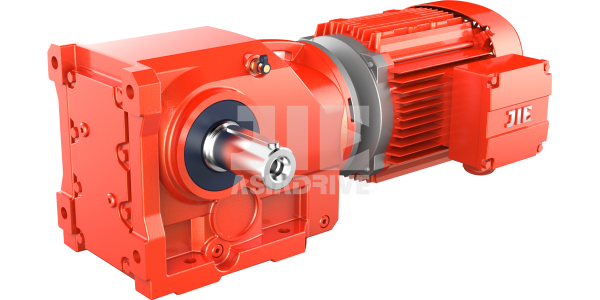

Model：37~167
Ratio：3.77~281.71
Input power：0.12~250kW
Output torque：3.5~37125N.m
Model：37~187
Ratio：3.98~197.37
Input power： 0.12~200kW
Output torque：10~62800N.m
Model：37~97
Ratio：6.8~288
Input power： 0.12~22kW
Output torque：11~4900N.m

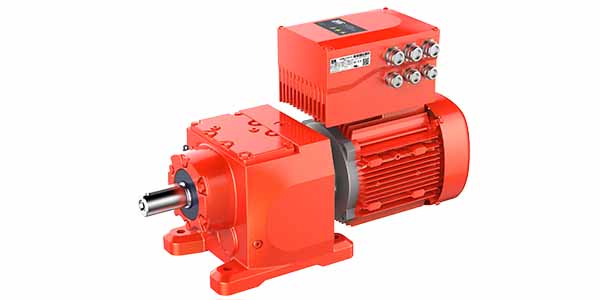

Size：0004~0075
Power：0.37~7.5
Ingress Protection： IP54 ~IP65
Mains supply：3X380~440VAC
Out frequency :0~200Hz
Model：17~187
Ratio：3.37~289.74
Input power：0.12~250 kW
Output torque：2.4~56494 N.m
Model：37~167
Ratio：3.77~281.71
Input power：0.12~250kW
Output torque：3.5~37125N.m
Model：37~187
Ratio：3.98~197.37
Input power： 0.12~200kW
Output torque：10~62800N.m
Model：37~97
Ratio：6.8~288
Input power： 0.12~22kW
Output torque：11~4900N.m
Size：0004~0075
Power：0.37~7.5
Ingress Protection： IP54 ~IP65
Mains supply：3X380~440VAC
Out frequency :0~200Hz
Module combination figure
Product highlights
Beautiful appearance, no oil leakage, low noise, fast delivery, intellectualization, maintenance-free
Seismic and noise reduction design is adopted for the box body and modification technology for gears.
Applied in warehousing logistics, tire rubber, environmental protection, chemical fiber and other industries

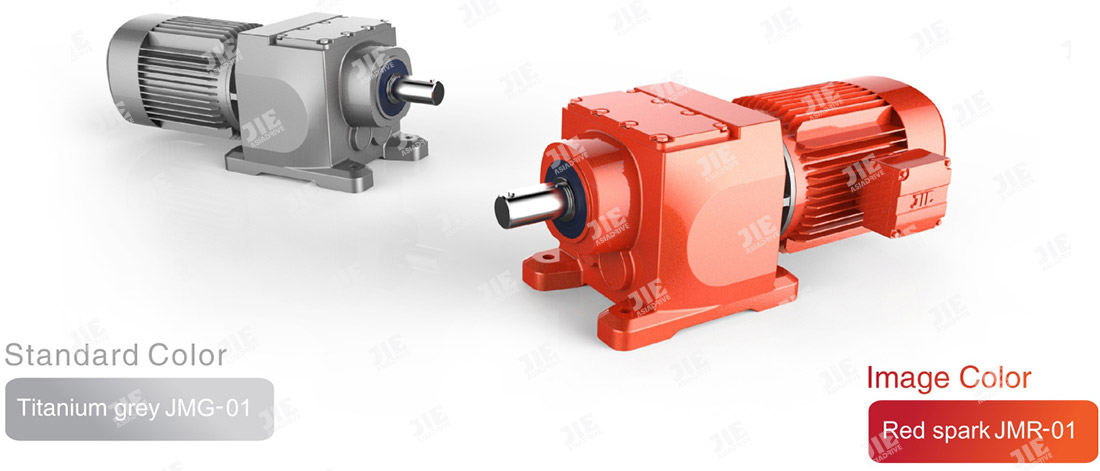

Image Color,Standard Color
JIE production color system includes image color、standard color and optional color.The image color is typical solution combined with red apark and titanium grey.The standard color is the main promotion color"Titanuum Grey".It is the neutral color which can be integrated into all kind of applicationg scene and increase the increase the integrality of reducer and machine.

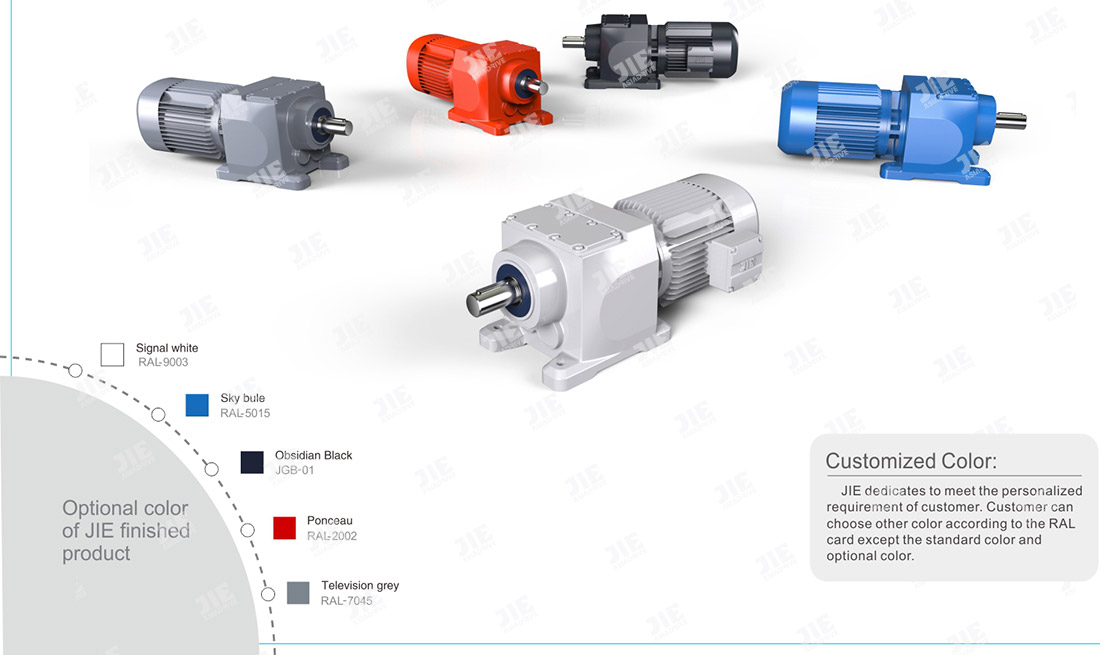

The Optional Color
JIE can provide abundant color solutions:signal white,sky blue,obsidian, black,ponceau,televison grey.Customer can select the color by requirement.

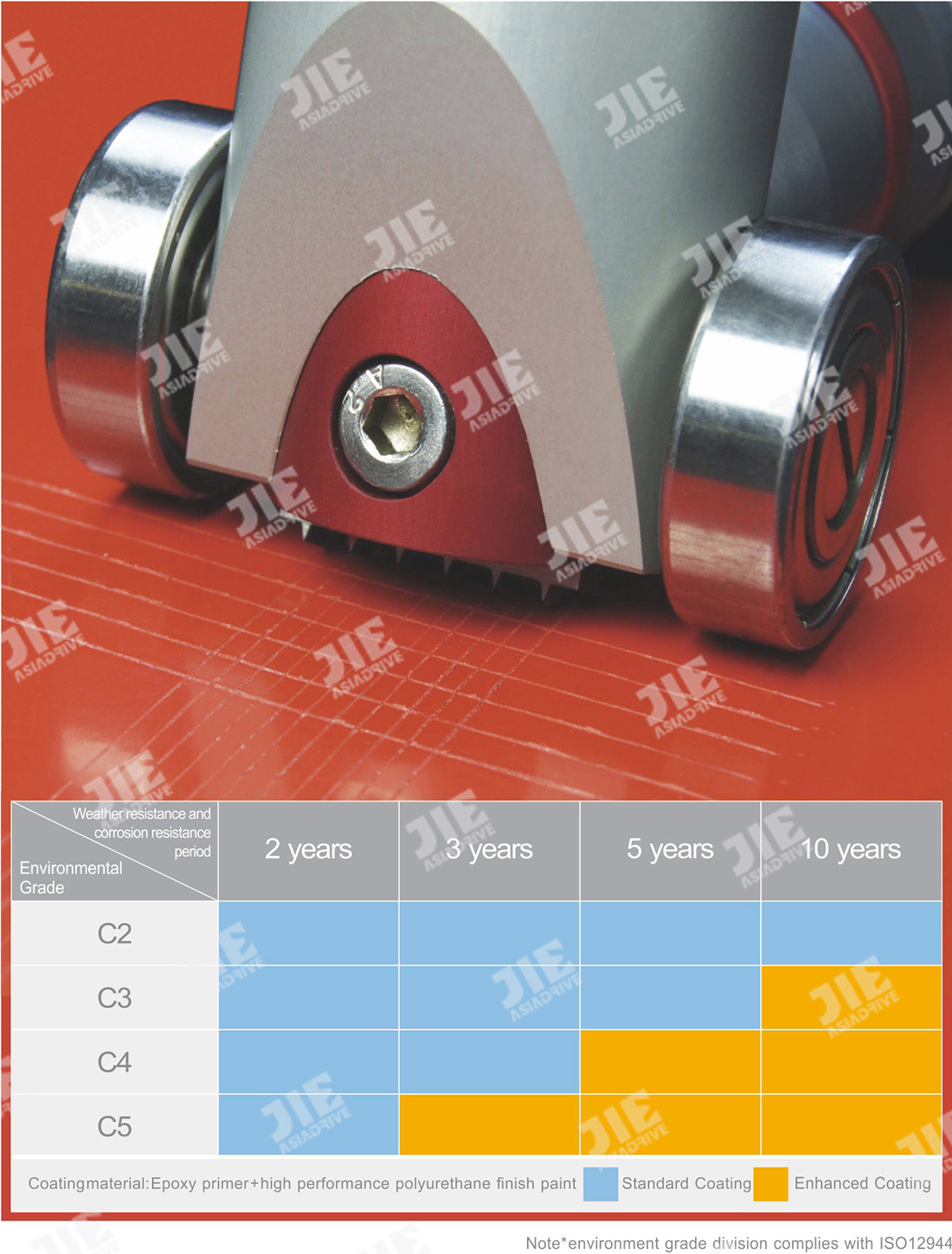

Paint Coating
New coating chuooses green paint according with the national enviromental protection requirement. The poisonous substances like VOC、TDI、Benzene/Methylbenzene、Xylene、Heavy metals are not included inside paint.The paint has strong adhesive force,weather resistance,corrosion resisitance and it can be applied in ordinary outdoor medium corrosion environment and all kind of indoor operation condition.And the strengthen coating system can adapt the heavy corrosion environment.

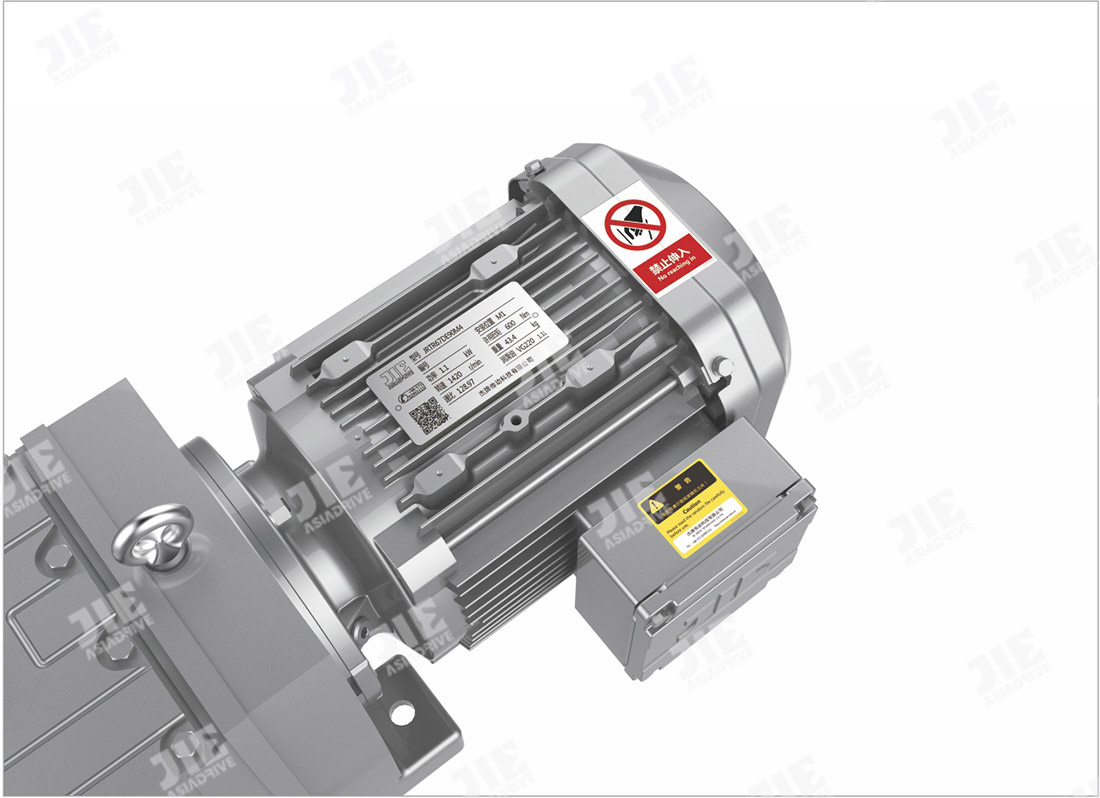

Identification Nameplate
New product adopt new nameplate identification system of JIE with the stainless steel laser printing technology and product QR code through which the product and sales service information can be quickly consulted.

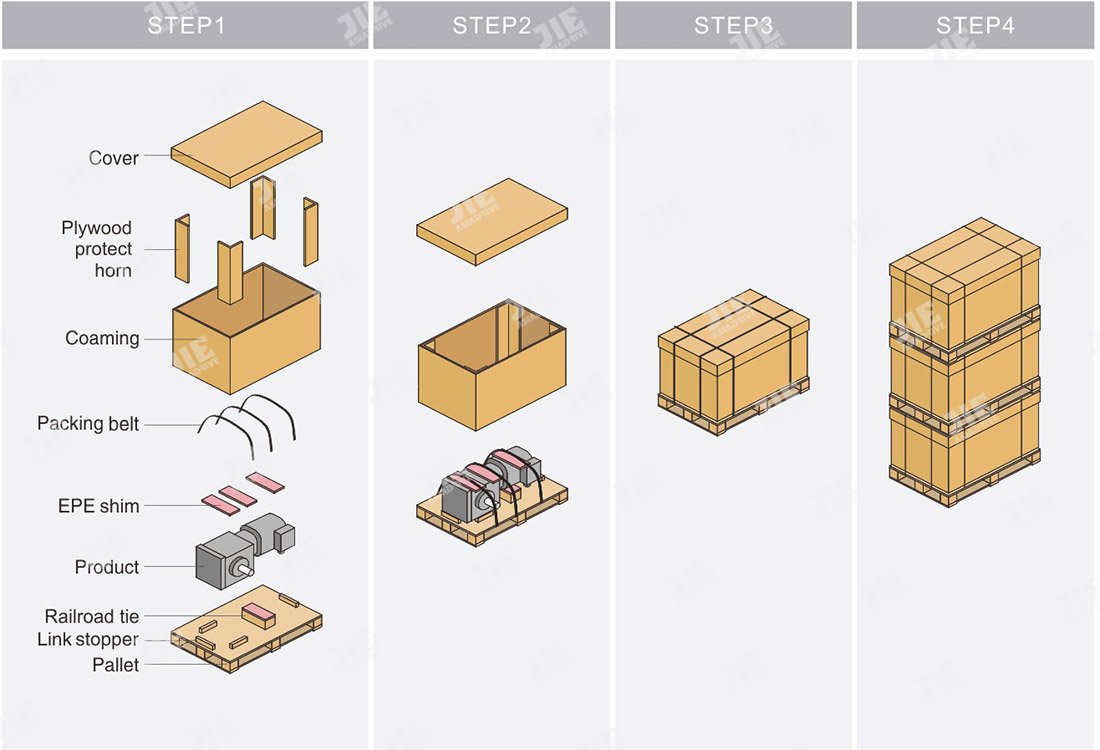

Package Pattern
New product adopt new package solution,more sturdy and durable.The package can be transported by truck and container.

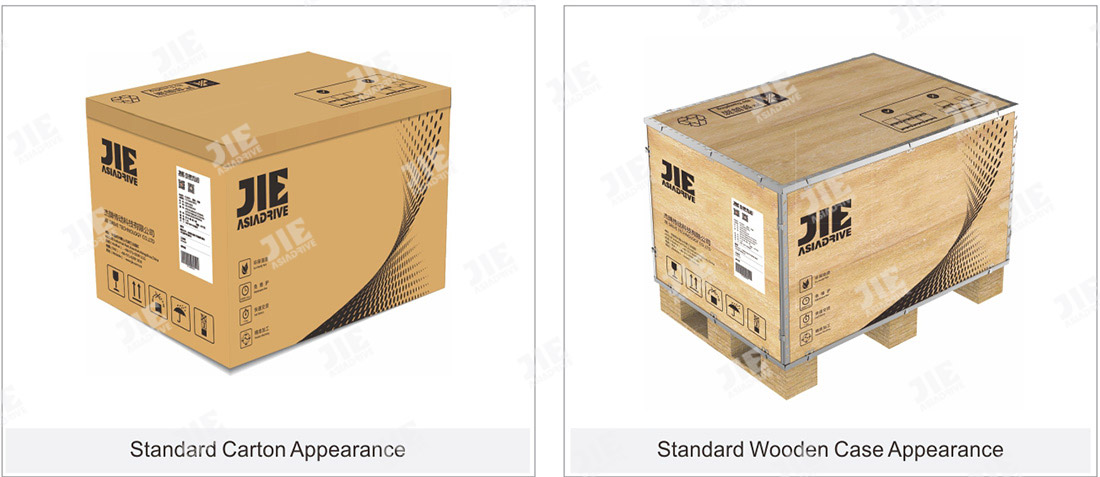

Packaging External Appearance
The packages are sorted into carton and wooden case according with the material.The standard package printing content includes JIE brand information,package specification,transportation and warehousing standard icon,product information and the product highlight icon.
Selection, data download
Solution
Textile industry
oil field
Machine tool
Tire industry
